Single Face Cardboard Production Line
WJ-100-1600-2-PLY CORRUGATED CARDBOARD PRODUCTION LINE
MAIN TECHNICAL CONFIGRATION
Design speed : 100m/min, Economic speed: 60-80m/min, Max working width: 1600mm
Flute type: A, C, B, E (Optional )
Heating type: Electricity or Steam
Power : 380V, 50Hz, 3 phases 4 lines capacity : 40KW
SPECIFICATON

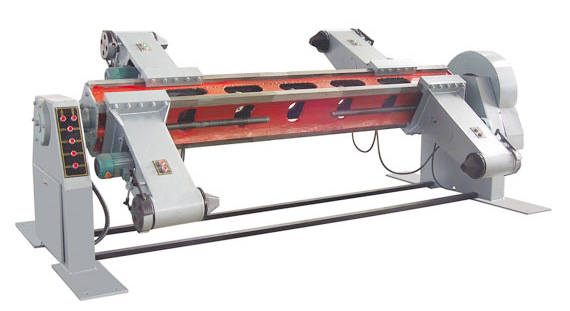

1.ZJ-F Electric mill roll sand ,including trolley.
Max. working width 1600mm; Min. working width 800mm
Max. paper roll Dia. 1400mm; Max working pneumatic pressure: 0.6-0.9Mpa
Power requirements: 380V, 50Hz
Machine Introduction:
*Swing type. *Max. paper roll dia.: 1400mm; length: 900-1600mm
*Clamping paper roll, moving right-left, arms up-down and paper roll rotation is electrical operated.
*Support two paper rollers in the meantime, one is working, and another is for spare part.
* Adopts “Spring clutch”.
* Paper tension controlled by pneumatically operated disc brake, setting the tension easily
2.Single Facer SF280-S , Fingerless , Outer Suction Type
Max. Machine speed : 100m/min Economic speed : 60-80m/min
Max. working width 1600mm; Power requirements: 380V, 50Hz
Diameter of corrugated roller 280mm; Diameter of Press roller . 285mm.
Diameter of preheater roller 300mm; Diameter of Glue roller 215mm
Diameter of doctor roller 105mm
*Corrugated rollers made of 48Cr-Mo alloy steel, with heat treatment for hardness HRC56-58, surface plated with hard chrome treatment.
*Gluing roller: surface is embossed with netting design and chrome plated.
*Adjustment of upper corrugated roller, pressure roller and glue roller controlled by pneumatic system.
*Flute: A, B, C, E, BC, etc.
*With preheating and preconditioning rollers.
Main Motor Power : 5.5KW , Heating unit(16X4) : 64KW the power of fan: 11KW
| Flute Type | A | C | BC | B | D | E | F | G |
| Flute Shape | UV | UV | UV | UV | UV | UV | UV | UV |
| Flute Height | 4.6-4.9 | 3.6-3.9 | 3.0-3.5 | 2.6-2.9 | 1.9-2.4 | 1.2-1.8 | 0.7-0.9 | 0.5-0.65 |
| Flute Nos | 34±2 | 38±2 | 43±2 | 48±2 | 64±8 | 83±8 | 116±10 | 150±10 |
| Take-up ratio | 1.47-1.58 | 1.38-1.50 | 1.38-1.48 | 1.33-1.42 | 1.35-1.39 | 1.25-1.38 | 1.2-1.24 | 1.19-1.22 |

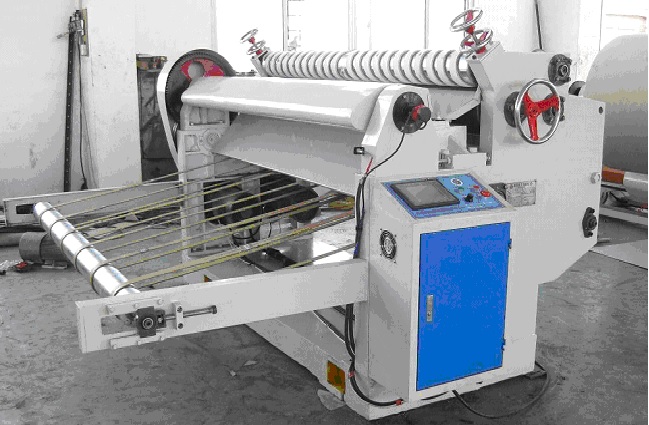

3. N.C Rotary Cutter for 2-Ply with slitter unit
Specification:
Width 1600mm; Cutting lenth 300—9999mm
Order keeping 99orders; Cutting precision ±2.5mm
Max.design speed 80m/min; Max.production speed 60-70m/min
Measurement : L x W x H 2450mm x 1650mm x 1500mm Weight 2300kg

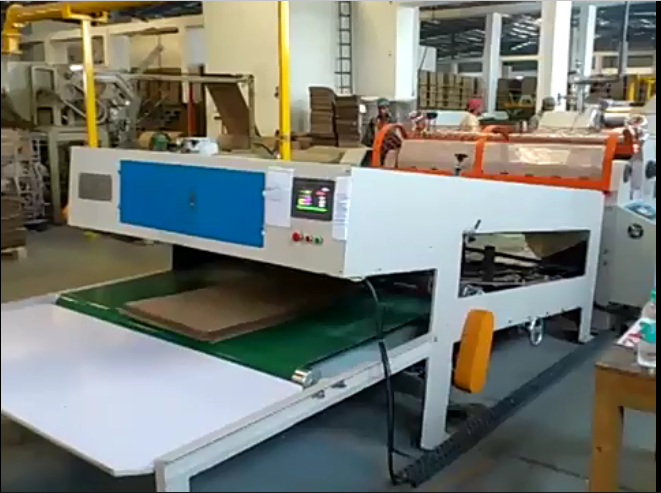

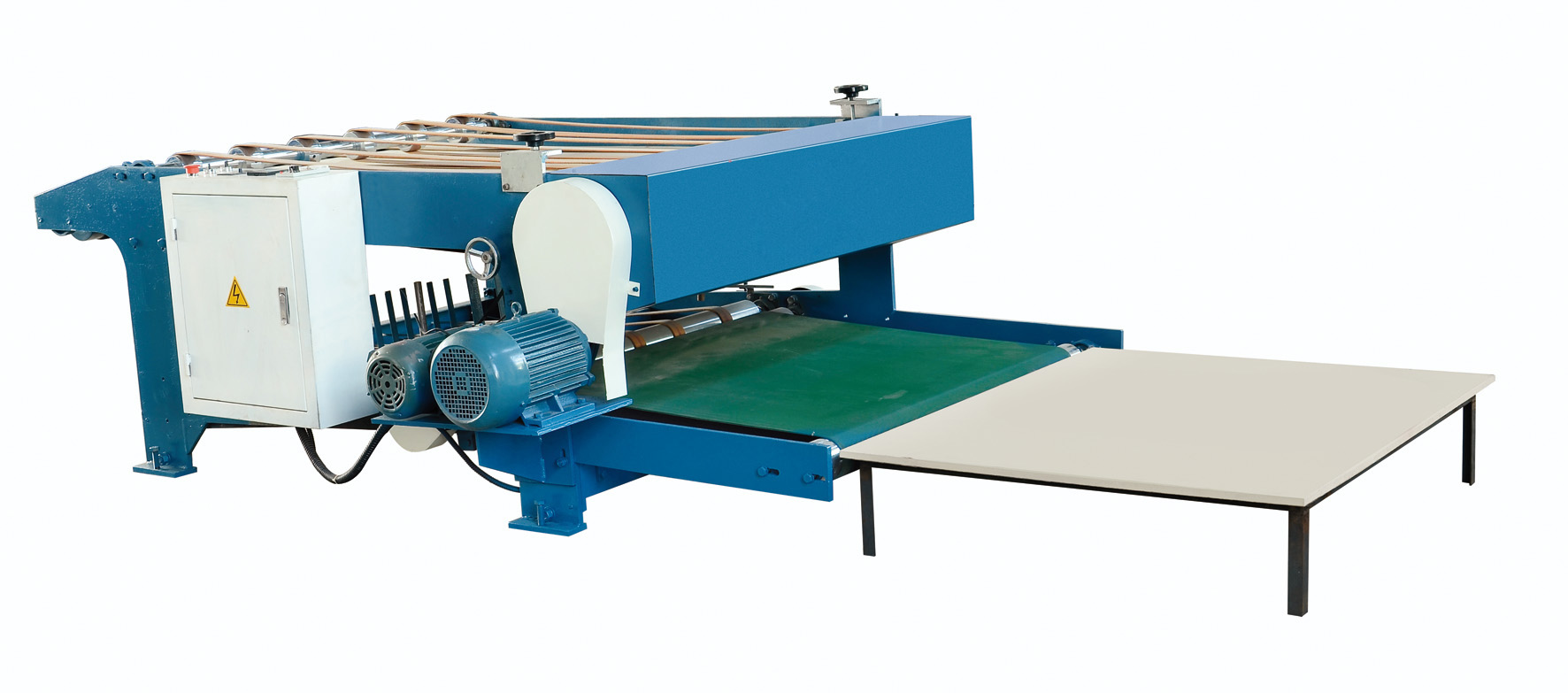

4.Returning Stacker SZJ-1600
The Max. Working speed : 70m/min
The Max. length of paper board stacking : 1350mm
The machine can realize automatic count ,automatic stacking, automatic separating piles without stop.
The Max. height of piles is 100mm
The machine covers small floor space ,and save manpower ,is the best choice for single faced cardboard production line.
